Introduction to Knockout.js and CRUD Operations in ASP.Net Web Forms Using Knockout.JS

Download Source Code

I) Introduction

II) Our Road-map

1. Part 1: Introduction to Knockout.js and CRUD Operations in ASP.NET Web Forms using Knockout.JS and Entity Framework.
2. Part 2: Complete end to end CRUD operations using Knockout.JS and Entity Framework in MVC4 application.

III) Part 1: Introduction to Knockout.js and CRUD Operations in ASP.NET Web Forms using Knockout.JS

IV) Knockout

• Automatic Refresh of UI
• Two way binding
• Templating

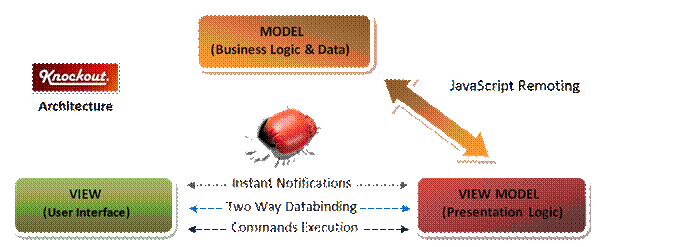

V) Model-View-View Model (MVVM)

1. Model (Business rule, data access, model classes, Data displayed in UI)
2. View (User interface (html, aspx, cshtml…))
3. ViewModel (Event handling, binding, business logic)

VI) Observables for Two Way Binding

<tr>
    <td>Batch :</td>
    <td>
        <input data-bind="value: Batch" /></td>
    <td><span data-bind="text: Batch" /></td>
</tr>
<tr>
    <td>Address :</td>
    <td>
        <input data-bind="value: Address" /></td>
    <td><span data-bind="text: Address" /></td>
</tr>
<tr>
    <td>Class :</td>
    <td>
        <input data-bind="value: Class" /></td>
    <td><span data-bind="text: Class" /></td>
</tr>

    var self = this;
    self.Batch = ko.observable();
    self.Address = ko.observable();
    self.Class = ko.observable();

VII) Setting up Environment in Visual Studio for KO

VIII) Creating Knockout Application

#region Public Web Methods.
        /// <summary>
        /// Gets Student Details
        /// </summary>
        /// <returns></returns>
        [WebMethod]
        public static Student[] FetchStudents()
        {
            LearningKOEntities dbEntities = new LearningKOEntities();
            var data = (from item in dbEntities.Students
                        orderby item.StudentId
                        select item).Take(5);
            return data.ToArray();
        }

/// <summary>
/// Saves Student Details
/// </summary>
/// <param name=”data”></param>
/// <returns></returns>
[WebMethod]
public static string SaveStudent(Student[] data)
{
try
{
var dbContext = new LearningKOEntities();
var studentList = from dbStududent in dbContext.Students select dbStududent;
foreach (Student userDetails in data)
{
var student = new Student();
if (userDetails != null)
{
student.StudentId = userDetails.StudentId;
student.FirstName = userDetails.FirstName;
student.LastName = userDetails.LastName;
student.Address = userDetails.Address;
student.Age = userDetails.Age;
student.Gender = userDetails.Gender;
student.Batch = userDetails.Batch;
student.Class = userDetails.Class;
student.School = userDetails.School;
student.Domicile = userDetails.Domicile;
}
Student stud=(from st in studentList where
st.StudentId==student.StudentId select st).FirstOrDefault();
if (stud == null)
dbContext.Students.Add(student);
dbContext.SaveChanges();
}
return “Data saved to database!”;
}
catch (Exception ex)
{
return “Error: “ + ex.Message;
}
}

/// <summary>
/// Deletes Student Details
/// </summary>
/// <param name=”data”></param>
/// <returns></returns>
[WebMethod]
public static string DeleteStudent(Student data)
{
try
{
var dbContext = new LearningKOEntities();
var student = dbContext.Students.FirstOrDefault
(userId => userId.StudentId == data.StudentId);
if (student != null)
{
if (student != null)
{
dbContext.Students.Remove(student);
dbContext.SaveChanges();
}
}
return “Data deleted from database!”;

}
catch (Exception ex)
{
return “Error: “ + ex.Message;
}
}
#endregion

<table style="width:100%;" >
            <tbody>
                <tr>
                    <th style="width:100px;">Property Name</th>
                    <th style="width:100px;">Enter Value</th>
                    <th style="width:100px;">Example of two Way Binding</th>
                </tr>
                </tbody>
            <tr>
                <td>Student ID (int):</td>
                <td>
                    <input data-bind="value: StudentId" />
                    </td> <!--,valueUpdate:'keypress'-->
                <td><span data-bind="text: StudentId" /></td>
            </tr>
            <tr>
                <td>First Name :</td>
                <td>
                    <input data-bind="value: FirstName" /></td>
                <td  ><span data-bind="text: FirstName" /></td>
            </tr>
            <tr>
                <td>Last Name :</td>
                <td>
                    <input data-bind="value: LastName" /></td>
                <td><span data-bind="text: LastName" /></td>
            </tr>

<tr>
<td>Student Age (int) :</td>
<td>
<input data-bind=”value: Age” /></td>
<td><span data-bind=”text: Age” /></td>
</tr>
<tr>
<td>Gender :</td>
<td>
<select data-bind=”options: Genders, value:
Gender, optionsCaption: ‘Select Gender…'”></select></td>
<td><span data-bind=”text: Gender” /></td>
</tr>
<tr>
<td>Batch :</td>
<td>
<input data-bind=”value: Batch” /></td>
<td><span data-bind=”text: Batch” /></td>
</tr>
<tr>
<td>Address :</td>
<td>
<input data-bind=”value: Address” /></td>
<td><span data-bind=”text: Address” /></td>
</tr>
<tr>
<td>Class :</td>
<td>
<input data-bind=”value: Class” /></td>
<td><span data-bind=”text: Class” /></td>
</tr>
<tr>
<td>School :</td>
<td>
<input data-bind=”value: School” /></td>
<td><span data-bind=”text: School” /></td>
</tr>
<tr>
<td>Domicile :</td>
<td>
<select data-bind=”options: Domiciles, value:
Domicile, optionsCaption: ‘Select Domicile…'”></select>
</td>
<td><span data-bind=”text: Domicile” /></td>
</tr>
<tr>
<td colspan=”3″>
<button type=”button” data-bind=”click:
AddStudent”>Add Student</button>
<button type=”button” data-bind=”click:
SaveStudent”>Save Student To Database</button>
</td>
</tr>

</table>
</div>

<div style=”width:70%;float:left;display:inline-block;”>
<h2>List of Students</h2>
<table style=”width:100%;” data-bind=”visible:
Students().length > 0″ border=”0″>
<tr>
<th>Student Id</th>
<th>First Name</th>
<th>Last Name</th>
<th>Age</th>
<th>Gender</th>
<th>Batch</th>
<th>Address</th>
<th>Class</th>
<th>School</th>
<th>Domicile</th>
</tr>
<tbody data-bind=”foreach: Students”>
<tr>
<td><span data-bind=”text: StudentId” /></td>
<td>
<input data-bind=”value: FirstName” /></td>
<td>
<input data-bind=”value: LastName” /></td>
<td>
<input data-bind=”value: Age” /></td>

<td>
<select data-bind=”options: $root.Genders,
value: Gender”></select></td>
<td>
<input data-bind=”value: Batch” /></td>
<td>
<input data-bind=”value: Address” /></td>
<td>
<input data-bind=”value: Class” /></td>
<td>
<input data-bind=”value: School” /></td>
<td>
<select data-bind=”options: $root.Domiciles,
value: Domicile”></select></td>

<td><a href=”#” data-bind=”click: $root.
DeleteStudent”>Delete</a></td>
</tr>
</tbody>
</table>

/// <reference path="jquery-2.0.3.min.js" />
/// <reference path="knockout-3.0.0.js" />

function Student(data) {
    this.StudentId = ko.observable(data.StudentId);
    this.FirstName = ko.observable(data.FirstName);
    this.LastName = ko.observable(data.LastName);
    this.Age = ko.observable(data.Age);
    this.Gender = ko.observable(data.Gender);
    this.Batch = ko.observable(data.Batch);
    this.Address = ko.observable(data.Address);
    this.Class = ko.observable(data.Class);
    this.School = ko.observable(data.School);
    this.Domicile = ko.observable(data.Domicile);
}

function StudentViewModel() {
var self = this;
self.Domiciles = ko.observableArray([‘Delhi’, ‘Outside Delhi’]);
self.Genders = ko.observableArray([‘Male’, ‘Female’]);
self.Students = ko.observableArray([]);
self.StudentId = ko.observable();
self.FirstName = ko.observable();
self.LastName = ko.observable();
self.Age = ko.observable();
self.Batch = ko.observable();
self.Address = ko.observable();
self.Class = ko.observable();
self.School = ko.observable();
self.Domicile = ko.observable();
self.Gender = ko.observable();

self.AddStudent = function () {
self.Students.push(new Student({
StudentId: self.StudentId(),
FirstName: self.FirstName(),
LastName: self.LastName(),
Domicile: self.Domicile(),
Age: self.Age(),
Batch: self.Batch(),
Address: self.Address(),
Class: self.Class(),
School: self.School(),
Gender: self.Gender()
}));
self.StudentId(““),
self.FirstName(““),
self.LastName(““),
self.Domicile(““),
self.Age(““),
self.Batch(““),
self.Address(““),
self.Class(““),
self.School(““),
self.Gender(““)
};

self.DeleteStudent = function (student) {

$.ajax({
type: “POST”,
url: ‘LearnKO.aspx/DeleteStudent’,
data: ko.toJSON({ data: student }),
contentType: “application/json; charset=utf-8″,
success: function (result) {
alert(result.d);
self.Students.remove(student)
},
error: function (err) {
alert(err.status + “ – “ + err.statusText);
}
});
};

self.SaveStudent = function () {
$.ajax({
type: “POST”,
url: ‘LearnKO.aspx/SaveStudent’,
data: ko.toJSON({ data: self.Students }),
contentType: “application/json; charset=utf-8″,
success: function (result) {
alert(result.d);
},
error: function (err) {
alert(err.status + “ – “ + err.statusText);
}
});
};

$.ajax({
type: “POST”,
url: ‘LearnKO.aspx/FetchStudents’,
contentType: “application/json; charset=utf-8″,
dataType: “json”,
success: function (results) {
var students = $.map(results.d, function (item) {
return new Student(item)
});
self.Students(students);
},
error: function (err) {
alert(err.status + “ – “ + err.statusText);
}
})
}

$(document).ready(function () {
ko.applyBindings(new StudentViewModel());
});

• observable: Used to define model/entity properties. If these properties are bound with user interface and when value for these properties gets updated, automatically the UI elements bound with these properties will be updated with the new value instantaneously.

E.g. this.StudentId = ko.observable(“1”); - => StudentId is the observable property. KO represent an object for the Knockout.js library.

The value of the observable is read as var id= this. StudentId ();

• observableArray: observableArray represents a collection of data elements which required notifications. It’s used to bind with the List kind of elements.
  E.g. this.Students = ko.observableArray([]);
• applyBindings: This is used to activate knockout for the current HTML document or a specific UI element in HTML document. The parameter for this method is the view-model which is defined in JavaScript. ThisViewModel contains the observable, observableArray and various methods.

• click: Represents a click event handler added to the UI element so that JavaScript function is called.
• value: This represents the value binding with the UI element’s value property to the property defined into theViewModel.

• visible: This is used to hide or unhide the UI element based upon the value passed to its binding.
• Text: This represents the text value of the parameter passed to the UI element.

IX) Conclusion
